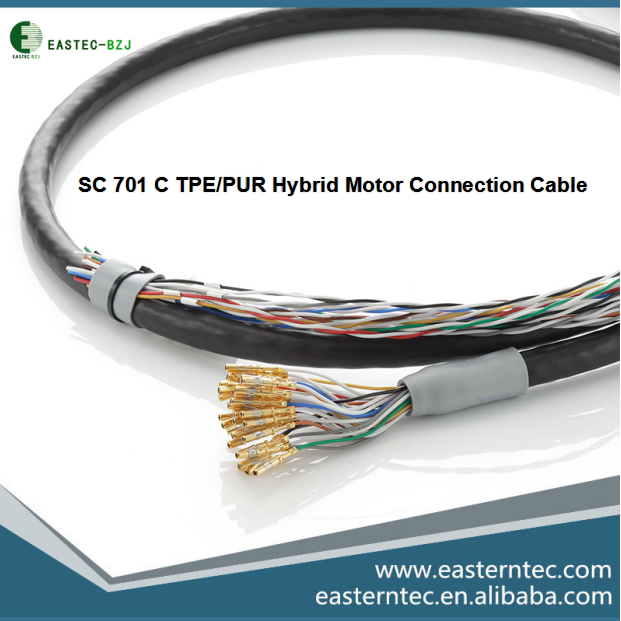

Conductor: Bare copper multi-strand wire in accordance with EC60228, EN60228, VDE0295.6 class <0.5mm² in accordance with DIN VDE0812
Insulation: TPE510
Color Code: Colored with continuous numbering of black cores in accordance with EN50334 and one green-yellow grounding core
Core Structure: Control cores 0.34mm²-2.5mm² paired twisted pairs
Shielding: Paired shielding or tin-plated copper braided sheath
Inner Jacket: Paired PETP foil wrap
Core Structure: Paired shielded control and power twisted pairs layered
Jacket: Non-woven tape
Shielding: Tin-plated copper braided sheath
Outer Jacket Material: Surface rough PUR, TMPU in accordance with DIN VDE0282+HD22.1010+HD22.10
Outer Jacket Color: Orange (RAL2003)
Technical Parameters
Rated Voltage: Uo/U 0.6/1kV
Maximum Operating Voltage: Control cores up to 500V
Test Voltage U: Power 4000V, Control cores up to 1500V
Minimum Bending Radius
Fixed Installation: 5xD
Mobile Installation: 10xD
Continuous Motion: 12xD
Operating Temperature
Fixed Installation: -50°C to +90°C
Mobile Installation: -40°C to +90°C
Radiation Resistance: 5x107cJ/kg
Oil Resistance: Excellent TMPU in accordance with DIN VDE0282+HD22.1
Chemical Resistance: Good resistance to acids, alkalis, solvents, hydraulic oils, etc.
Characteristics and Compliance
Characteristics: ◆ Extremely flexible ◆ Oil resistance ◆ Ultra-long service life ◆ Non-stick installation ◆ Rubber-free (no moisture and ash during installation) ◆ Low-temperature flexibility ◆ Excellent electromagnetic performance ◆ Cable bundling according to variable needs
Compliance Certification:
Typical Applications
Highly flexible drag chain cables used in servo-driven industries, such as automation technology, machine manufacturing, industrial robots, factory structures, power equipment, control and manufacturing engineering, processing systems, automotive manufacturing plants, and central circuits in woodworking centers with DESINA color coding.
