Super micro screw for medical and other precision instrument

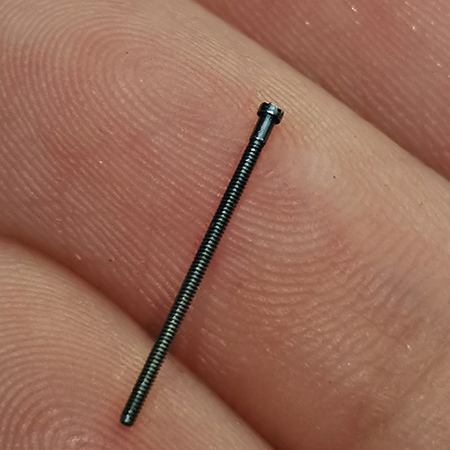

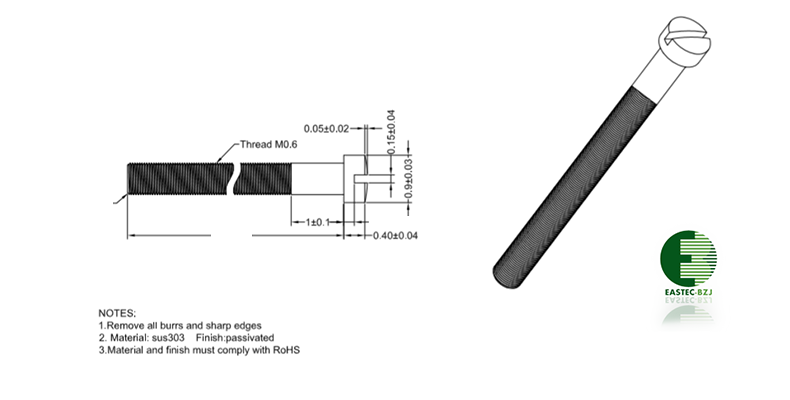

In 2008, Eastec successfully developed the m0.6x12mm super micro screw, which is widely used in biomedical research field, providing necessary parts of cell electrode components for CSHL (www.cshl.edu), Austrian University, Danish University, Huazhong University of Science and Technology, Shanghai University of Science and Technology and many other universities and global research institutions. Now we can offers super miniature screws from M0.25 to M0.8 in all specifications

Size	Thread Designation	Diameter	TPI
0.25	M0.25X0.075	0.25	/
0.3	M0.3X0.08	0.3	/
0.3	M0.3X0.09	0.3	/
0.35	M0.35X0.09	0.35	/
0.4	M0.4X0.1	0.4	/
0.45	M0.45X0.1	0.45	/
0.5	M0.5X0.125	0.5	/
0000#-160	0000#-160	0.5334	160
0.55	M0.55X0.125	0.55	/
0.6	M0.6X0.15	0.6	/
0.7	M0.7X0.175	0.7	/
0.8	M0.8X0.2	0.8	/
000#-120	000#-120	0.8636	120
0.9	0.9X0.225	0.9	/
M1	M1X0.2	1	/
M1.1	M1.1X0.25	1.1	/
M1.1	M1.1X0.2	1.1	/
00#-90	00#-90	1.1938	90
00#-80	00#-80	1.524	80

packing: bag
If you have other specifications, please also contact us, we support custom products
